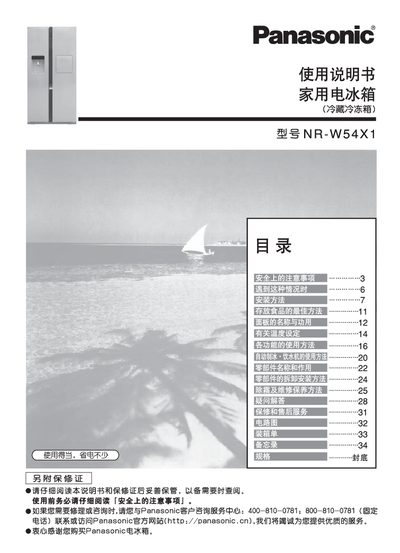

This manual describes the Panasonic NR‑W54X1 household refrigerator, highlighting its dual‑cycle cooling system, LED lighting, smart cooling navigation, and built‑in water dispenser with ice maker. It also explains the antibacterial silver‑ion lighting and fresh‑keeping functions that help preserve food quality.
The guide includes safety precautions, recommended clearances for installation, detailed steps for connecting the water supply hose and filter, and troubleshooting tips. Proper installation ensures efficient operation, low noise, and compliance with energy‑efficiency standards. This manual is written in Chinese.
| Total effective volume | 545 L |
|---|---|
| Refrigerated compartment volume | 339 L |
| Freezer compartment volume | 206 L |
| Rated voltage | 220 V~ |
| Rated frequency | 50 Hz |
| Freezing capacity | 15.0 kg/24 h |
| Rated current | 1.18 A |
| Power consumption | 1.15 kWh/24 h |
| Energy efficiency class | 1 |
| Refrigerant | R600a (70 g) |
| Noise level | 38 dB(A) |
| Weight | 126 kg |
| Dimensions (W×D×H) | 905 × 710 × 1850 mm |
The unit consumes 1.15 kWh per 24 hours when the smart cooling function is turned off.
It uses R600a refrigerant, with a charge amount of 70 g.
