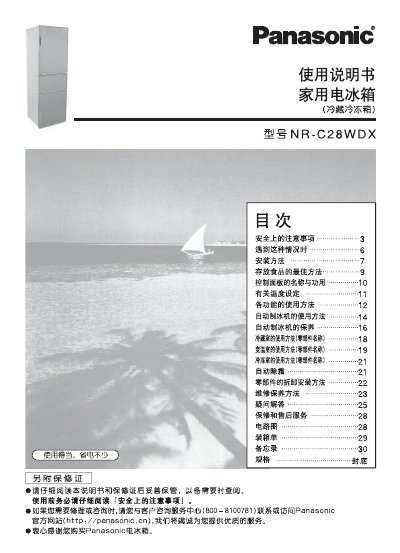

This manual provides detailed instructions for safely installing, operating, and maintaining the Panasonic NR-C28WDX household refrigerator. It includes safety precautions, proper placement guidelines, and step‑by‑step procedures for using the fresh‑food, variable‑temperature, and freezer compartments.
The document also lists technical specifications such as total capacity, energy consumption, and refrigerant type, and offers warranty and service contact information for owners. This manual is written in Chinese.
| Total effective volume | 281 L |
|---|---|
| Refrigerated compartment volume | 172 L |
| Variable‑temperature compartment volume | 40 L |
| Freezer compartment volume | 69 L |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Freezing capacity | 13.0 kg/24h |
| Power consumption | 0.72 kWh/24h |
| Energy efficiency class | 2 |
| Refrigerant type and charge | R600a 60 g |
| Noise level | 36 dB(A) |
| Weight | 86 kg |
| Dimensions (W×D×H) | 600×635×1850 mm |
Leave at least 4 cm on the left and right sides and 10 cm at the back and top.
The refrigerator uses 0.72 kWh per 24 hours.
The model number is NR‑C28WDX.
