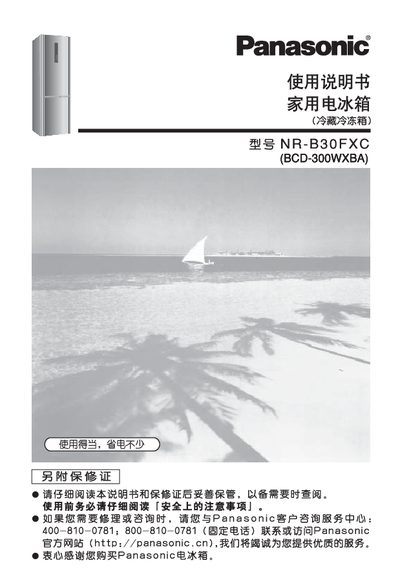

This manual provides safety instructions, installation guidelines, and operating procedures for the Panasonic NR‑B30FXC household refrigerator. It covers the layout of the control panel, temperature settings for the fresh‑food, fruit‑vegetable and freezer compartments, and special features such as the anti‑bacterial silver ion system and quick‑freeze function.
The document also includes detailed specifications, parts list, moving and transport instructions, and warranty information. Users are advised to read the safety section before use and to follow the recommended clearances when installing the appliance. This manual is written in Chinese.
| Total Capacity | 300 L |
|---|---|
| Refrigerator (Fresh) Capacity | 178 L |
| Freezer Capacity | 74 L |
| Fruit & Vegetable Compartment Capacity | 48 L |
| Rated Voltage | 220 V~ |
| Rated Frequency | 50 Hz |
| Ice Production | 1.5 kg/24 h |
| Freezing Capacity | 13.0 kg/24 h |
| Rated Current | 1.2 A |
| Power Consumption | 0.68 kWh/24 h |
| Energy Efficiency Class | 1 |
| Refrigerant | R600a (70 g) |
| Sound Power Level | 37 dB(A) |
| Weight | 79 kg |
| Dimensions (W×D×H) | 601 × 648 × 1898 mm |
Leave at least 4 cm of clearance on the left and right sides, 10 cm at the back and on the top, and ensure the unit is placed on a level, solid surface.
The appliance is rated for 220 V~ and 50 Hz.
