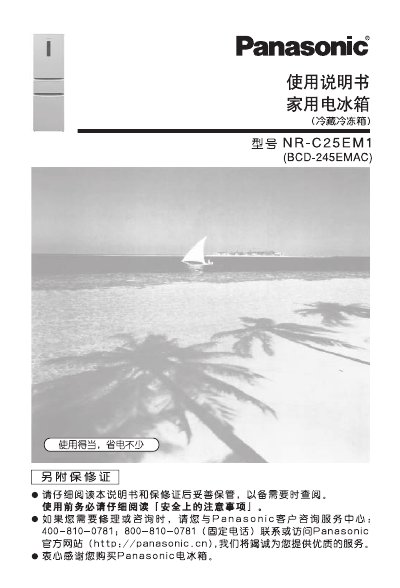

This manual provides safety precautions, installation steps, and operating instructions for the Panasonic NR‑C25EM1 household refrigerator. It explains how to adjust the leveling legs, clear space around the unit, and let the appliance stand before powering it on.
The guide also covers optimal food storage methods, component identification, maintenance tips, troubleshooting, and warranty information, along with a full technical specification sheet. This manual is written in Chinese.
| Product name | 家用电冰箱 (冷藏冷冻箱) |
|---|---|
| Model | NR-C25EM1 (BCD-245EMAC) |
| Total capacity | 245 L |
| Refrigerator compartment capacity | 135 L |
| Freezer compartment capacity | 75 L |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Rated current | 0.60 A |
| Power consumption | 0.53 kWh/24 h |
| Energy efficiency level | 1级 |
| Noise level | 37 dB(A) |
| Lighting power | 1 W |
| Freezing capacity | 13.0 kg/24 h |
| Ice making capacity | 1.4 kg/24 h |
| Refrigerant | R600a (60 g) |
| Weight | 62 kg |
Leave at least 4 cm on the left and right sides, and 10 cm above the unit; the back also needs 10 cm clearance.
The refrigerator is rated for 220 V.
It uses R600a refrigerant, filled with 60 g.
The total effective capacity is 245 L.
