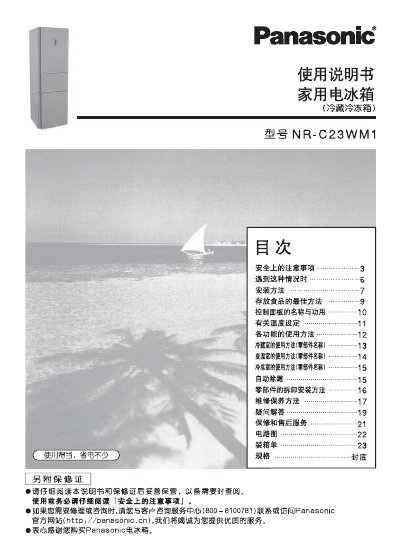

This manual explains safety precautions, proper installation, and how to use the fresh, variable‑temperature, and freezer compartments of the Panasonic NR‑C23WM1 refrigerator. It also covers part removal, troubleshooting, warranty service, and includes a circuit diagram and packing list.
Detailed specifications such as capacity, power consumption, dimensions, and refrigerant type are listed, along with instructions for moving, handling, and preparing the appliance for use. This manual is written in Chinese.
| Total effective capacity | 226 L |
|---|---|
| Fresh compartment capacity | 132 L |
| Variable temperature compartment capacity | 34 L |
| Freezer compartment capacity | 60 L |
| Rated frequency | 50 Hz |
| Ice making capacity | 2.0 kg/24h |
| Freezing capacity | 12.0 kg/24h |
| Rated current | 0.83 A |
| Power consumption | 0.64 kWh/24h |
| Energy efficiency class | 2 |
| Refrigerant | R600a (60 g) |
| Noise level | 37 dB(A) |
| Weight | 66 kg |
| Dimensions (W×D×H) | 550×638×1760 mm |
Do not touch the power plug with wet hands, do not install the refrigerator in a humid place, and keep water containers away from the plug.
Leave at least 4 cm clearance on the left and right sides and at least 10 cm at the back and top, place it on a level floor, adjust the feet, and wait 30 minutes before powering on.
