This PDF file introduces the information of a high-definition player, including screen size, supported video formats, built-in storage space, supported audio formats, supported playback functions, supported audio and video input and output methods.

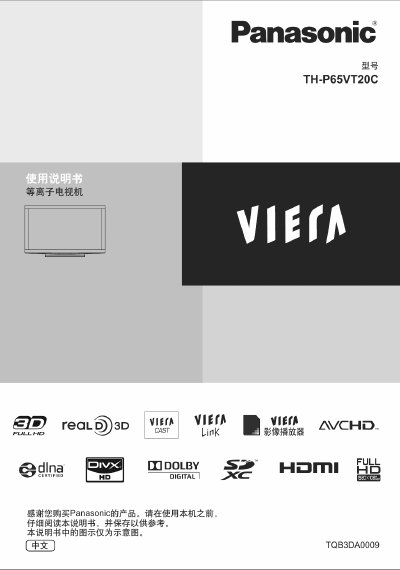

This manual covers safety precautions, proper handling of the power source, and step‑by‑step installation of the TV and its accessories. It explains how to mount the unit, connect the remote control, and attach optional sound‑reflection panels.
It also describes the TV’s audio/video inputs, supported formats, dimensions, power requirements, and basic operation features such as VIERA Link and DLNA. Troubleshooting tips and cleaning instructions are included to help maintain reliable performance. This manual is written in Chinese.
| Power Supply | 220V~, 50/60 Hz |
|---|---|
| HDMI Ports | 4 (HDMI1‑4) |
| USB Port | USB 2.0 A‑type, 5 V, max 500 mA |
| LAN Interface | 10BASE‑T / 100BASE‑TX |
| Dimensions (W×H×D) | 1.580 mm × 967 mm × 415 mm |
The TV operates on 220 V with a frequency of 50 Hz or 60 Hz.
The TV provides four HDMI inputs, labeled HDMI1 through HDMI4.
It has a USB 2.0 A‑type port that supplies 5 V with a maximum current of 500 mA.
