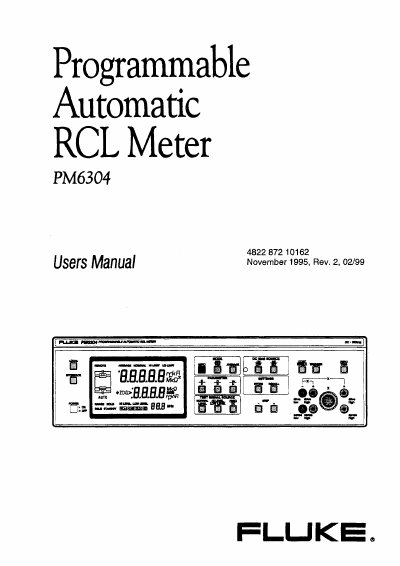

This manual introduces the features and usage of Fluke Programmable Automatic RCL Meter.
This manual covers everything needed to install, set up, and safely operate the Fluke PM6304 programmable automatic RCL meter. It begins with a shipment note, initial inspection checklist, and detailed installation and safety instructions, including grounding, power connections, and line‑voltage settings.
Subsequent chapters describe the instrument’s main features, step‑by‑step start‑up procedures, measurement principles, and a full function reference. Appendices contain diagrams, formulas, storage‑register tables, and a worldwide list of authorized service centers.
| Frequency range | DC – 100 kHz |
|---|---|
| Power cable | Included (see Section 1.1.4) |
You must quote the type number and serial number as shown on the instrument’s type plate.
Only trained and qualified personnel may operate, maintain, or repair the instrument because it is an electrical apparatus.
