Introduction to the installation, settings, usage, and maintenance of Founder Scanner series products, as well as the provided service commitments.

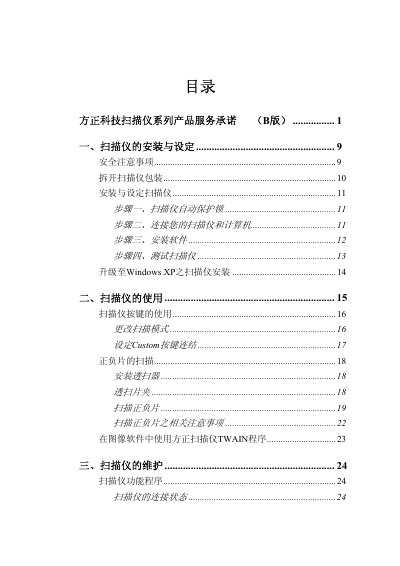

This document outlines the complete service commitment for Founder T68 scanners, covering safety precautions, unpacking, installation, software setup, and testing. It also explains how to use scanner functions such as button operations, film scanning, and TWAIN integration.
Additional sections describe maintenance procedures, lamp control, alignment, and detailed technical specifications. Warranty terms, nationwide service, and contact information for support are also provided. This manual is written in Chinese.
| Physical Dimensions (W×D×H) | 441 × 266 × 80 mm |
|---|---|
| Weight | 2.7 kg |
| Operating Temperature | 10 °C to 40 °C |
| Maximum Scan Area (Reflective) | 216 mm × 297 mm (8.5 in × 11.69 in) |
| Optical Resolution | 3200 dpi |
| Maximum Interpolated Resolution | 24000 dpi |
| Connection Interface | USB 2.0 High Speed |
| Power Adapter Output | DC 15 V, 1.0 A |
| Power Consumption (Operation) | 15 W max |
| Power Consumption (Idle) | 5 W |
The scanner has a one‑year nationwide warranty covering hardware faults, with free repair or replacement according to the three‑package (三包) policy.
Open the Scanner Utility, click the Start Alignment button, place a reference photo on the glass, and adjust using the arrow buttons until the image aligns with the preview window.
The manual includes steps for installing the scanner under Windows XP.
