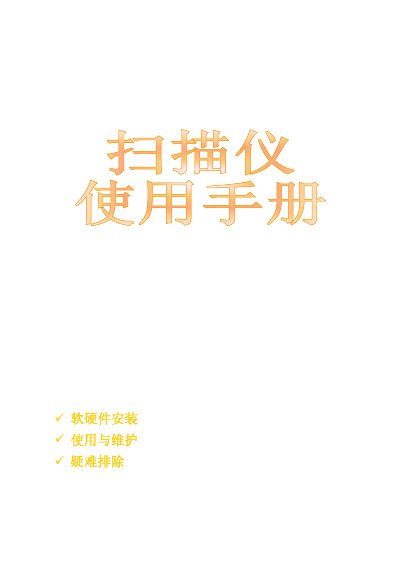

Fujian Technology Scanner Series Product User Manual, introduces the product's functions, features, installation, use, maintenance and troubleshooting
This manual provides step‑by‑step instructions for installing the Founder C scanner, including hardware connection, software setup and initial testing. It also explains the required system specifications and how to configure the device under Windows environments.
The document includes detailed sections on operating the scanner, cleaning and calibration, a full list of specifications, and a troubleshooting appendix with common problems and solutions. Service and warranty information are provided in the final chapters. This manual is written in Chinese.
| Physical dimensions | 274 mm × 47 mm × 33.8 mm |
|---|---|
| Weight | 0.33 kg |
| Operating temperature | 10 °C to 40 °C (50 °F to 104 °F) |
| Maximum scan area | 216 mm × 356 mm |
| Optical resolution | 600 dpi |
| Maximum software resolution | 1200 dpi |
| Interface | USB (no external power required) |
| Power consumption (operating) | 2.5 W |
| Power consumption (standby) | 1.2 W |
Save the scanned image as JPG or PNG, then attach the file to your email message using your email client’s attachment feature.
