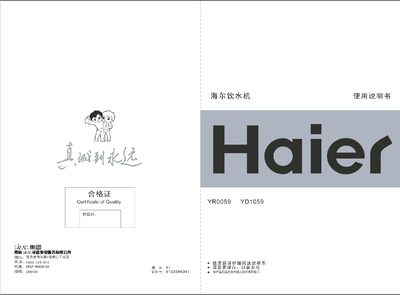

This manual explains how to install, operate and maintain the Haier YR0059/YD1059 drinking water machine. It covers safety requirements, power connection, water selection, and the functions for hot, warm, cold and room‑temperature water.
The document also lists the technical specifications, common fault symptoms, cleaning procedures, environmental disposal guidelines and warranty information, along with a nationwide service‑center directory. This manual is written in Chinese.
| Model | YR0059 / YD1059 |
|---|---|
| Rated total power | 1200 W (YR0059) / 1265 W (YD1059) |
| Rated heating power | 1200 W |
| Shock‑protection type | Class I |
| Operating temperature range | 10 °C – 38 °C |
| Operating humidity range | ≤ 90 % |
Only bottled purified water should be used; using mineral water may cause scale buildup in the heating tank.
After the machine runs for 30 minutes, turn off the power, open the drain plug, empty the water, then close the plug. For scale removal, fill the tank with 2 % food‑grade citric acid solution, run for 30 minutes, drain, and rinse with purified water.
The power socket must be a three‑pole grounded outlet equipped with a leakage‑protective device.
Turn on the rear cooling switch; when the cooling indicator changes from green to yellow, the machine has finished cooling and cold water can be dispensed.
