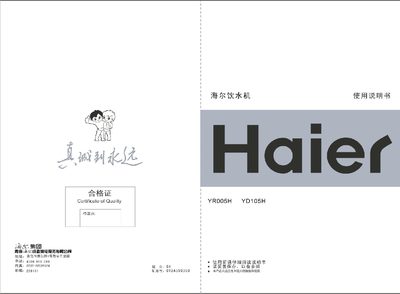

This manual provides detailed instructions for installing, operating and maintaining Haier YR005H and YD105H drinking fountains. It covers safety precautions, power requirements, water source recommendations, and troubleshooting tips.
The document also includes technical specifications, cleaning procedures, storage guidelines, environmental disposal information, and warranty details for both hot‑water and chilled‑water models. This manual is written in Chinese.
| Model | YR005H / YD105H |
|---|---|
| Rated Voltage / Frequency | 220 V / 50 Hz |
| Rated Total Power | 500 W (YR005H) / 575 W (YD105H) |
| Rated Heating Power | 500 W (YR005H) / 500 W (YD105H) |
| Rated Cooling Power | 75 W (YD105H) |
| Power Consumption | 1.0 kW·h/24 h (YR005H) / 1.38 kW·h/24 h (YD105H) |
| Heating Water Capacity | 5 L (YR005H) / 5 L (YD105H) |
| Cooling Water Capacity | 0.7 L (YD105H) |
| Protection Type | Class I (YR005H) / Class II (YD105H) |
| Operating Ambient Temperature | 10 °C – 38 °C |
Only bottled purified water should be used; using mineral water may cause scale buildup in the heating tank.
