ProSim 8 Patient Simulator is an 8-in-1 simulator for fast, comprehensive preventive maintenance (PM) testing of your entire patient monitoring device fleet. With professional, Keep-Alive ECG, ensuring lead connectivity, physiological synchronized pulses for all parameters and customizable patient presets and auto-sequencing, it delivers unmatched fast and convenient comprehensive monitoring testing.
The Fluke ProSim 8 is an 8‑in‑1 patient‑monitor simulator that provides rapid, comprehensive preventive‑maintenance testing for ECG, respiration, temperature, invasive and non‑invasive blood pressure, cardiac output, oxygen saturation and Rainbow multi‑wavelength waveforms. It includes built‑in connectivity such as barcode scanning, USB and IEEE 802.15.4 wireless, as well as customizable patient presets and automatic sequencing.

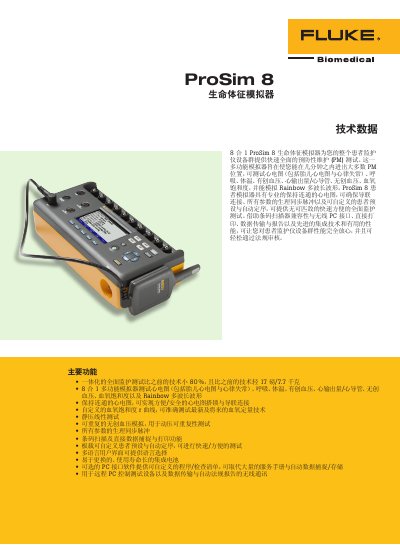

The document details the device’s environmental limits, electrical interfaces, battery operation, safety certifications, and a full list of optional accessories and ordering information, enabling users to set up, operate, and maintain the simulator in compliance with regulatory requirements. This manual is written in Chinese.
| Operating temperature | 10 °C to 40 °C |
|---|---|
| Storage temperature | -20 °C to +60 °C |
| Relative humidity | 10 % to 90 % non‑condensing |
| Maximum altitude | 3,000 m |
| Dimensions (L×W×H) | 14.5 cm × 30.2 cm × 8.6 cm |
| Weight | 1.87 kg |
| Battery life | ≥9 hours (minimum) |
| Power input | 100‑240 V AC, 15 V/2.0 A output |
| Safety standards | EN/IEC 61010‑1, CE, CSA, C‑TICK, RoHS |
| Communication interfaces | USB Mini‑B, IEEE 802.15.4 wireless |
It operates from 10 °C up to 40 °C.
The battery provides at least 9 hours of operation.
The device offers a USB Mini‑B port and IEEE 802.15.4 wireless interface.
It complies with EN/IEC 61010‑1, CE, CSA, C‑TICK and RoHS standards.
