The Fluke Ti20 thermal imager is a product from Fluke Corporation that has the ability to detect defects in materials and processes. It comes with a one-year warranty and a 90-day warranty for parts and repairs.

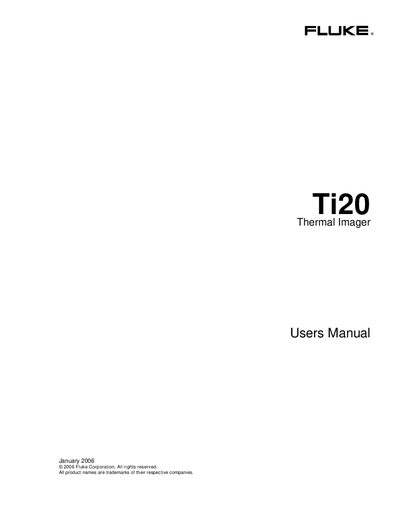

The Fluke Ti20 Thermal Imager User Manual introduces the Ti20 handheld thermal imaging unit, describing its lightweight pistol‑grip design, laser‑trigger operation, and ability to store up to 50 images for later analysis. It covers basic setup steps such as unpacking, battery installation, charging, and connecting accessories like the AC power adapter and USB cable.
The manual also details safety warnings, emissivity adjustments, advanced data‑management functions, and full technical specifications, including temperature range, detector type, accuracy, and battery life. Warranty terms, contact information for Fluke service centers, and environmental operating limits are provided to ensure proper use and maintenance.
| Thermal Temperature Range | -10 to 350 °C (14 to 662 °F) |
|---|---|
| Detector Type | 80 × 60 thermal element focal plane array (FPA) |
| Accuracy | ± 2 °C or 2 % (whichever is greater) |
| Repeatability | ± 1 % or ± 1 °C (± 2 °F) whichever is greater |
| NETD (Thermal Sensitivity) | 200 mK |
| Spectral Range | 7.5 to 14 µm |
| Battery Life (continuous use) | Minimum 3 hours |
| Storage Capacity | 50 images |
| Electrical Power | Rechargeable battery pack (included) |
| Weight | 1.2 kg (2.65 lb) |
The Ti20 is warranted for one year from the date of shipment, with parts, repairs, and services covered for 90 days.
The Ti20 can measure temperatures from –10 °C to 350 °C (14 °F to 662 °F).
The imager can store up to 50 images that can be transferred via USB to a computer.
The battery provides a minimum of three hours of continuous use.
