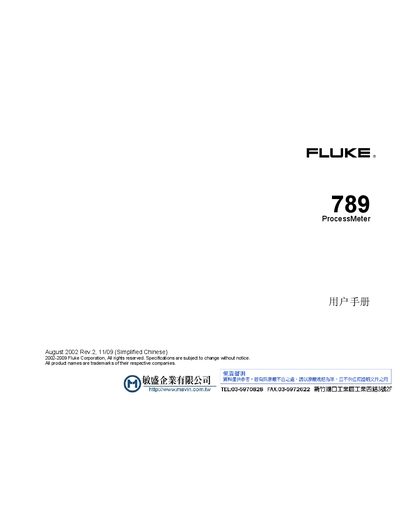

789 ProcessMeter user manual, introducing the product's use methods, precautions, maintenance methods, etc.
This manual introduces the Fluke 789 ProcessMeter, covering safety precautions, initial setup, and measurement functions such as voltage, current, resistance, and diode testing. It explains how to use features like AutoHold, current output, and simulation mode, and provides guidance on battery life and maintenance.
Additional sections detail power options, circuit power modes, fuse replacement, troubleshooting steps, part replacement, and the full technical specifications, including dimensions, weight, environmental limits, and compliance with safety standards. This manual is written in Chinese.
| Dimensions | 10.0 cm × 20.3 cm × 5.0 cm |
|---|---|
| Weight | 610 g (1.6 lb) |
| Relative humidity range | 95 %–30 °C, 75 %–40 °C, 45 %–50 °C, 35 %–55 °C |
| Vibration resistance | Random 2 g, 5–500 Hz |
| Impact test | 1 m drop test |
| Safety standards | EN61010-1:2001, ANSHISA S82.01-2004, CANVCSA C22.2 No. 1010-1:2004, UL61010-1 |
| Power source | Four AA alkaline batteries recommended |
| AC voltage accuracy change in RF field | +0.25 % when exposed to >3 V/m |
| DC current output accuracy change in RF field | +0.32 % when >3 V/m |
Fluke guarantees the product for three years from the date of purchase.
It complies with EN61010-1:2001, ANSHISA S82.01-2004, CANVCSA C22.2 No. 1010-1:2004, and UL61010-1.
