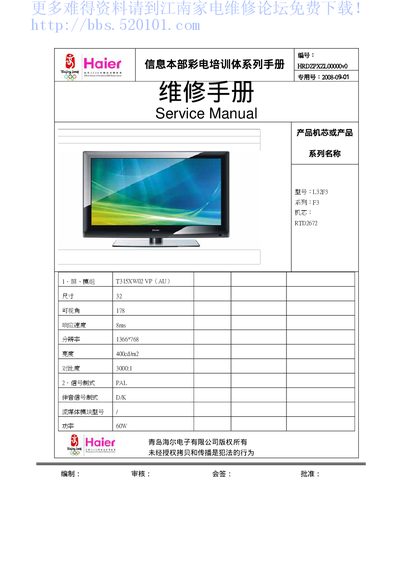

Haier L32F3 TV repair manual, including product appearance, function features, specifications, installation instructions, operating instructions, disassembly instructions, schematic diagrams and wiring diagrams, typical fault diagnosis and solutions
This service manual provides detailed information for the Haier L32F3 32‑inch LCD television. It includes product specifications, safety warnings, installation steps, and troubleshooting guidance for technicians.
The document also lists connector types, audio‑video features, power requirements, and mechanical dimensions, helping service personnel diagnose and repair the unit safely and efficiently. This manual is written in Chinese.
| Display size | 32 inches |
|---|---|
| Resolution | 1366×768 |
| Contrast ratio | 3000:1 |
| Power consumption | 60 W |
| Net weight (without base) | 13.8 kg |
| HDMI input | Yes (1 port) |
The television provides one HDMI input.
The unit’s total power input is rated at 60 W.
