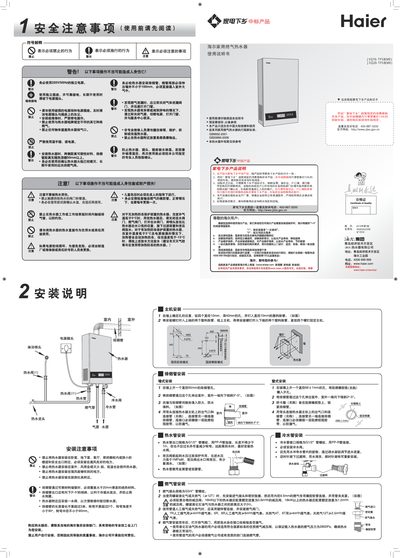

Haier JSQ16-TFSB(ME) / JSQ20-TFSB(ME) Gas Water Heater User Manual

Haier gas water heater user manual

Brand: Haier
Document type: User Manual
Language: Chinese
Pages: 2
File format: PDF
File size: 10.3 MB
Published: 27 February, 2012
Updated: 30 September, 2023
MD5 checksum: 2CD4693806BE4BA2DF04CB084B38C4B6
PDF: Haier JSQ16-TFSB(ME) / JSQ20-TFSB(ME) Gas Water Heater User Manual PDF

About this manual

This manual provides safety warnings, installation steps, wiring diagrams and operating instructions for Haier’s JSQ16‑TFSB(ME) and JSQ20‑TFSB(ME) household gas water heaters. It explains how to connect power, gas and water lines, set temperature, and use the control panel.

The document also includes troubleshooting tips, fault codes, regular maintenance procedures, technical specifications and warranty information to help users keep the water heater running safely and efficiently. This manual is written in Chinese.

What's inside

Safety Precautions
Installation Instructions
Control Panel Operation
Temperature Adjustment
Fault Codes
Maintenance and Cleaning
Technical Data
Warranty and Service

Specifications

Model	JSQ16‑TFSB(ME) / JSQ20‑TFSB(ME)
Gas Type	Natural gas
Rated Heat Load	16 kW / 20 kW
Energy Efficiency Level	Level 2
Rated Hot Water Output	8 kg/min / 10 kg/min
Net Weight	12.5 kg / 16 kg

Frequently asked questions

What to do when the power is not connected?

Connect the unit to a reliable 220 V/50 Hz independent power source.

How to handle unstable water pressure?

Check the water pressure and adjust the supply if necessary.
