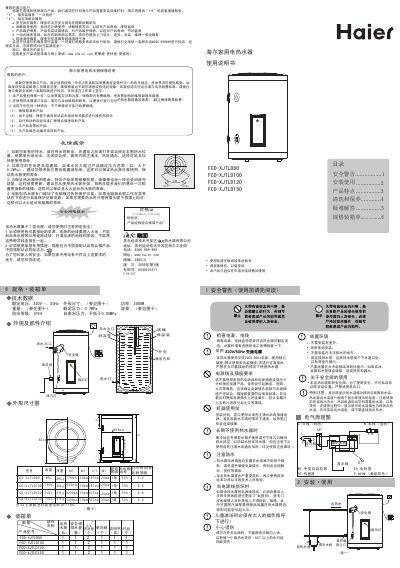

Specifications and installation and use instructions for Haier household electric water heaters of 80L 100L 120L 150L
This manual provides complete guidance for Haier’s FCD‑XJTLD series household electric water heaters. It covers safety warnings, installation requirements, technical data, operation procedures, cleaning, maintenance and troubleshooting for the 80 L, 100 L, 120 L and 150 L capacity models.
The document also includes wiring diagrams, part identification, error‑code explanations and warranty information, helping users install the unit safely, operate it efficiently and perform routine maintenance. This manual is written in Chinese.
| Rated Voltage | 220 V ~ 50 Hz |
|---|---|
| Power | 2000 W |
| Rated Pressure | 0.7 MPa |
| IP Rating | IPX4 |
| Minimum Water Supply Pressure | ≥0.05 MPa |
| Net Weight | 29 kg / 33 kg / 37 kg / 47 kg |
| Temperature Setting Range | 35 °C – 75 °C (step 5 °C) |
The water heater must be filled with water before the power is turned on.
The safety valve should be checked at least once a month during use.
Error code E1 means the water supply is stopped or the water pressure is too low.
No, the water heater must be installed indoors in an environment above 0 °C.
