Haier household air conditioner KF-72LW/01BN-S2 instruction manual, including product parameters, appearance size, usage methods, installation methods and other content

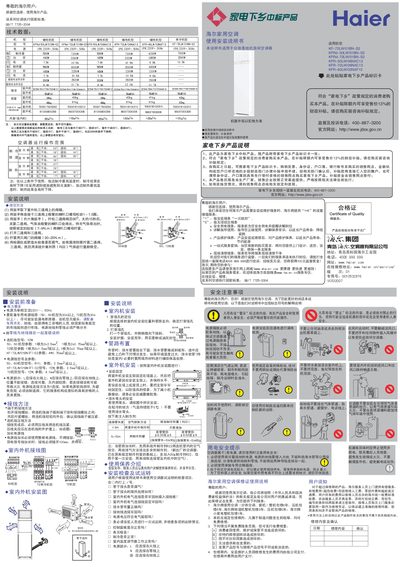

This manual provides step‑by‑step instructions for installing the Haier KFR‑50LW/06NAC13 and KFR‑72LW/06NAC13 split‑type air‑conditioner units. It includes safety precautions, required power specifications, and model‑specific technical data such as cooling/heating capacity, dimensions, and weight.
The guide details the wiring of power and control lines, placement of indoor and outdoor units, pipe routing, and how to configure the remote control functions (timer, strong/quiet mode, auxiliary heating, etc.). It also covers routine cleaning, filter maintenance, and troubleshooting tips to ensure reliable operation throughout the service life of the units. This manual is written in Chinese.
| Cooling capacity | 5200W (KFR‑50LW) / 7200W (KFR‑72LW) |
|---|---|
| Power consumption | 1600W (KFR‑50LW) / 2260W (KFR‑72LW) |
| Supply voltage | 1PH, 220V~, 50Hz |
| Outdoor unit dimensions | 810 mm × 680 mm × 288 mm |
| Outdoor unit weight | ≈8 kg |
The unit must be connected to a single‑phase 220 V supply at 50 Hz.
It is recommended to clean the indoor filter about every 15 days.
The KFR‑50LW provides up to 5200 W of cooling, while the KFR‑72LW can deliver up to 7200 W.
