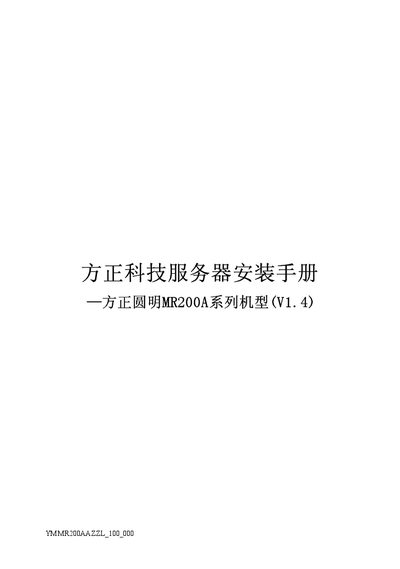

A manual for the installation of Founder Tech servers, including the installation methods for Founder Yuanming MR200A series machines.
This guide explains how to safely unpack, position, and connect the Founder MR200A server. It covers checking transport packaging, selecting a suitable location, verifying power cables, adding devices, connecting peripherals, and running the POST sequence before installing the operating system.
Safety warnings, environmental requirements, and recommended workspace conditions are detailed, including temperature, humidity, and spacing guidelines to ensure reliable operation of the server. This manual is written in Chinese.
| Weight | 17.1 kg – 22.9 kg |
|---|---|
| Maximum Power‑Cable Length | 4.5 m |
| Overload Current | 13 A |
| Operating Temperature | 10 °C – 35 °C |
| Storage/Transport Temperature | -40 °C – 55 °C |
| Operating Humidity | 35 % – 80 % |
| Recommended Clearance (Back) | 31 cm |
| Recommended Clearance (Sides) | 60 cm |
| Recommended Clearance (Front) | 22 cm |
The server weighs between 17.1 kg and 22.9 kg depending on configuration.
The power cable should not exceed 4.5 meters in length.
Leave at least 31 cm at the back, 60 cm on each side, and 22 cm in front of the server.
The server operates safely between 10 °C and 35 °C.
