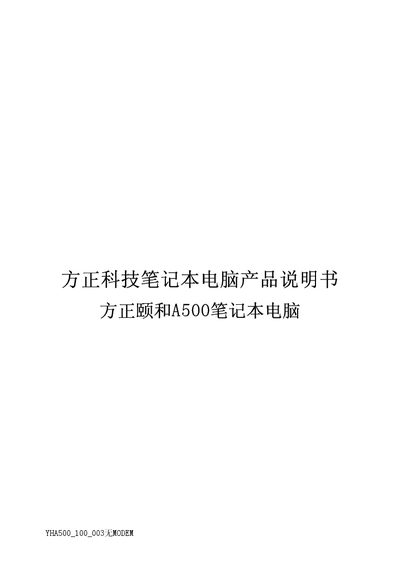

This document is a product manual for Founder Technology laptops, introducing the features and characteristics of the Founder YHA500 laptop.
This manual introduces the Founder A500 notebook, covering safety precautions, product overview, basic usage, BIOS settings and driver installation. It also contains detailed troubleshooting steps for common hardware and software issues.
The appendix lists the full technical specifications, including CPU, memory, display, storage, I/O ports, power adapter, battery life, dimensions and weight, helping users understand the capabilities of the device. This manual is written in Chinese.
| CPU | Intel Pentium M / Intel Celeron M |
|---|---|
| Chipset | Intel 915GM / 910GML |
| Memory | 2 DDR2 SO‑DIMM slots, up to 1 GB |
| Display | 14.1" TFT LCD, 1024×768 resolution |
| Touchpad | 2‑button touchpad |
| Hard Drive | 2.5" IDE, Ultra ATA 100, 40/60/80 GB |
| Optical Drive | 5.25" DVD‑RW Combo |
| Audio Ports | Microphone and audio output jacks |
| Network | 10/100Base‑TX Ethernet |
| Power Adapter | 100‑240 V ~ 50‑60 Hz → 20 V 3.25 A |
| Battery | Smart Li‑ion, approx. 2 hours runtime |
| Dimensions | 307 mm × 258 mm × 24 mm |
| Weight | ≈2.35 kg (incl. battery) |
Run the laptop until the battery is depleted and the system shuts down automatically.
The battery is fully charged when the battery indicator light on the laptop shows that charging is complete.
The laptop should be used in an environment with temperatures between 10 °C and 35 °C.
Do not spill any liquids or other foreign objects onto the laptop, as this may cause fire or electric shock.
