The ServerIron ADX series switches are application delivery controllers that provide industry-leading Layer 2-7 switching performance to help build highly secure and scalable application service infrastructures. These switches can measure server utilization and connection load in real time, efficiently allocate unified application business loads on this basis, provide comprehensive visibility and effectively manage application performance, security and service delivery. Therefore, applications can run more efficiently while providing higher availability, thereby simplifying operations, increasing business flexibility and significantly reducing costs.
The ServerIron ADX series delivers next‑generation application delivery for data‑center environments. Featuring dedicated FPGA acceleration, SSL offload, and up to 70 Gbps of 4‑7 layer throughput, the switches support load balancing, content caching, firewall integration, and high‑availability options.

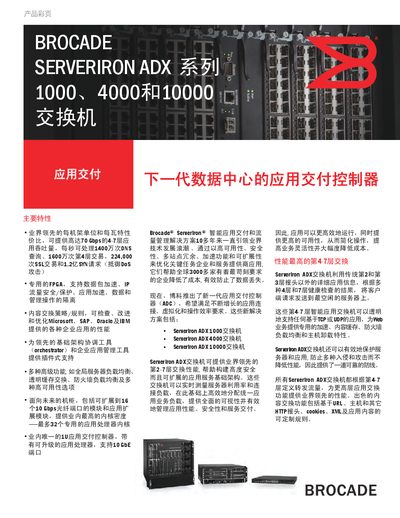

The modular design offers flexible port configurations, hot‑swappable power supplies, and optional application expansion modules. Management can be performed via a CLI or a web‑based GUI, and the devices integrate with Brocade IronView Network Manager for monitoring and analytics. This manual is written in Chinese.
| Maximum application cores | 4 (1000), 16 (4000), 32 (10000) |
|---|---|
| Maximum system storage | 8 GB (1000), 32 GB (4000), 64 GB (10000) |
| Maximum 10 GbE ports (XFP) | 2 (1000), 8 (4000), 16 (10000) |
| 4th‑layer throughput | 9 Gbps (1000), 35 Gbps (4000), 70 Gbps (10000) |
| Maximum power consumption | 390 W (1000), 952 W (4000), 1920 W (10000) |
The ServerIron ADX 4000 provides up to 35 Gbps of 4th‑layer throughput.
The switches support both active/standby (主/备) and active/active (主/主) modes, hot‑swappable redundant power supplies, and module redundancy for continuous operation.
