NetIron MLX series routers, based on a leading-edge architecture and terabit-switching fabric based on a fifth-generation network processor, provide network planners with a rich set of high-performance IPv4, IPv6, MPLS, and Multi-VRF functionality and advanced Layer 2 switching capabilities. These advanced switching routers offer a wide range of features to meet the diverse needs of many environments including MAN, ISP, data center, large enterprises, government networks, education/research, and high performance computing (HPC).
The NetIron MLX series are high‑performance carrier‑grade Ethernet routers offering up to 32 slots, line‑rate IPv4/IPv6/MPLS/VRF forwarding, and advanced QoS. They feature a fully redundant N+1 architecture with redundant management modules, power supplies, cooling, and exchange matrix, enabling uninterrupted operation and online software upgrades.

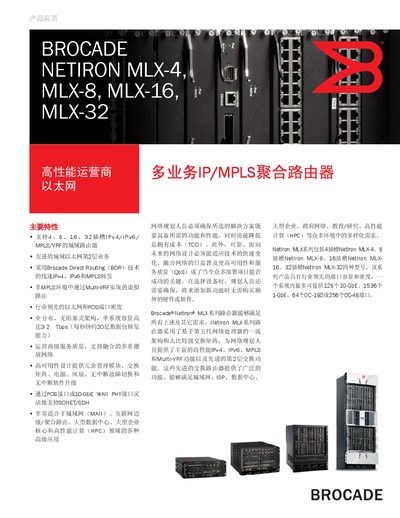

The leaflet lists physical dimensions, power consumption, port densities, and compliance with numerous IEEE, RFC, and safety standards. Detailed part numbers for AC/DC system modules, management modules, and interface cards are also provided for ordering and system design. This manual is written in Chinese.
| Maximum DC Power (W) | 1,313 (MLX-4) |
|---|---|
| Maximum 10‑GbE Ports | 16 (MLX-4) |
| Dimensions (W×H×D) | 17.45"w x 6.96"h x 22.5"d (MLX-4) |
The series includes redundant management modules, a redundant exchange matrix, and redundant power and cooling systems.
