Start here

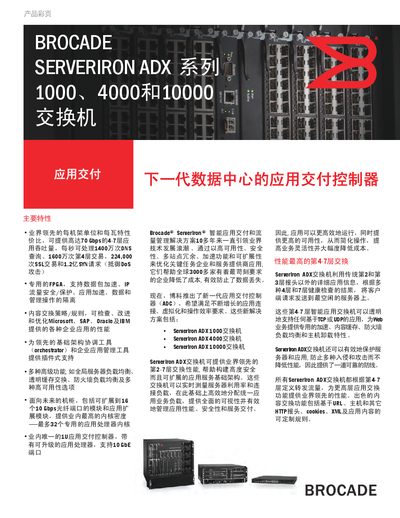

BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual
The Brocade ServerIron ADX series provides high‑performance, scalable switching for data‑center and enterprise environments. Models 1000, 4000 and 10000 share a common architecture with options for 1U fixed platforms, modular chassis, SSL acceleration, DDoS protection and advanced load‑balancing.
The manual describes hardware specifications, interface options, management tools (CLI, GUI, IronView Network Manager) and best‑practice configuration for features such as ACLs, VLANs, VRRP, GSLB and Application Resource Broker. This manual is written in Chinese.
BROCADE AND10000 specifications
| Maximum application cores | 4 (1000), 16 (4000), 32 (10000) |
|---|---|
| Maximum system storage | 8 GB (1000), 32 GB (4000), 64 GB (10000) |
| Maximum 10 GbE ports (XFP) | 2 (1000), 8 (4000), 16 (10000) |
| 4th‑layer throughput | 9 Gbps (1000), 35 Gbps (4000), 70 Gbps (10000) |
| Maximum power consumption | 390 W (1000), 952 W (4000), 1920 W (10000) |
Source: BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual(1)
All BROCADE AND10000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum 4th‑layer throughput of the ServerIron ADX 4000?
The ServerIron ADX 4000 provides up to 35 Gbps of 4th‑layer throughput.
From: BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual(1)
What high‑availability configurations are available for the ADX switches?
The switches support both active/standby (主/备) and active/active (主/主) modes, hot‑swappable redundant power supplies, and module redundancy for continuous operation.
From: BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual(1)
What is the maximum throughput of the ADX 10000 switch?
The ADX 10000 delivers up to 70 Gbps of throughput for both 4th‑layer and 7th‑layer traffic.
From: BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual
What DDoS protection capabilities are built into the ADX series?
All ADX models include hardware DDoS protection, with packet‑per‑second capacities of 15 M, 60 M and 120 M for the 1000, 4000 and 10000 respectively, plus SYN‑flood mitigation and SSL acceleration.
From: BROCADE SERVERIRON ADX series1000 4000 And10000 switche Manual
