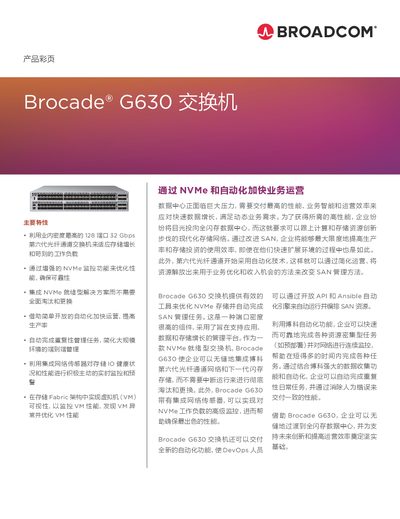

Technical specifications and features of the Brocade G630 128‑port 32 Gbps Fibre Channel switch.
The Brocade G630 is a high‑density, 128‑port 32 Gbps Fibre Channel switch designed for enterprise storage networks. It offers NVMe‑ready performance, integrated automation, and advanced monitoring through Brocade Fabric Vision.
The switch provides flexible port expansion, real‑time data encryption/compression, and a range of management interfaces including REST API, SNMP, and CLI. It supports up to 4 Tbps total bandwidth and includes robust security and reliability features for data‑center environments. This manual is written in Chinese.
| SFP+ ports | 96 |
|---|---|
| QSFP ports | 8 |
| Maximum total bandwidth | 4 Tbps |
| Maximum power consumption (full load) | 942 W |
| Local port latency | 780 ns |
| ISL link aggregation speed | 256 Gbps per link (512 Gbps full‑duplex) |
| Operating temperature range | 0 °C to 40 °C |
The G630 provides 96 SFP+ ports.
The maximum power consumption is 942 W.
The switch can deliver up to 4 Tbps of total bandwidth.
Yes, it supports up to 12 ports for real‑time data encryption and compression.
