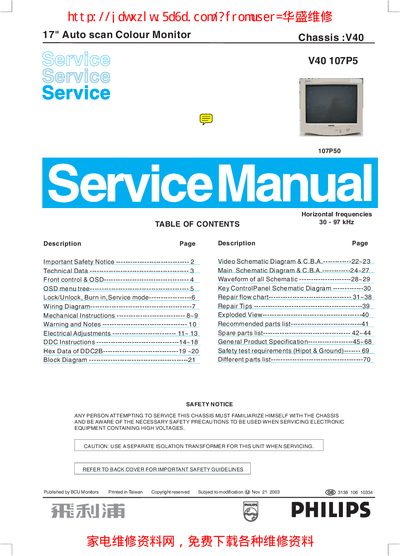

The maintenance manual of 17 inch auto scan color monitor, which includes safety notice, technical data, front control and OSD, OSD menu tree, lock/unlock, burn in, service mode, mechanical instructions, warning and notes, electrical adjustments, DDC instructions, block diagram, description page, video schematic diagram and CBA, repair tips, exploded view, parts list, spare parts list, main schematic diagram and CBA, waveform, key control panel schematic diagram and repair flow chart, recommended general product specification, safety test requirements (voltage and current).
This service manual provides detailed safety notices, wiring diagrams, mechanical instructions, and service procedures for the Philips V40 107P5 CRT monitor. It includes step‑by‑step guidance for OSD lock, factory mode, burn‑in, and service mode, as well as parts lists and safety test requirements.
The document also contains technical specifications such as display size, scanning frequencies, power requirements, and environmental limits, helping technicians perform accurate diagnostics and repairs while maintaining compliance with Philips safety standards.
| Horizontal scanning frequency | 80‑97 kHz |
|---|---|
| Vertical scanning frequency | 50‑160 Hz |
| Video dot rate | 203 MHz |
| Input impedance (video) | 75 Ω |
| Signal input level | 4.7 kΩ |
| Power supply | 90‑264 VAC, 50/60 Hz |
| Maximum power consumption | 90 W |
| Dimensions (W × H × D) | 399 mm × 410 mm × 419 mm |
| Operating temperature | 0 °C to 40 °C |
A separate isolation transformer must be used when working on the chassis to avoid shock hazards.
The monitor operates on 90‑264 VAC at 50/60 Hz.
