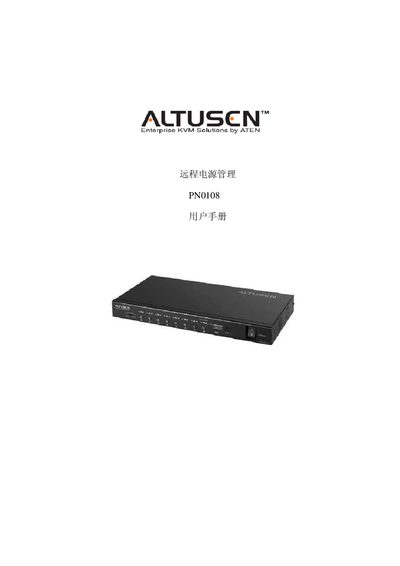

This manual introduces the features and usage of ATEN remote power management PN0108, including installation, safety use, and rack mounting.
This manual covers the safety requirements, installation steps, and operating procedures for the Aten PN0108 remote power management unit. It includes guidance on proper grounding, cable selection, rack mounting, and environmental considerations to ensure reliable performance.
The document also details firmware upgrade procedures, administrator login management, troubleshooting steps, and technical specifications such as input/output ratings, power consumption, and physical dimensions. Warranty and support information are provided at the end of the manual. This manual is written in Chinese.
| Input power connector | IEC 60320/C14 (male) |
|---|---|
| Input rating (total) | 100~120V 12A / 220~240V 10A, 50/60Hz |
| Output power connectors | 8 × IEC 60320/C13 (female) |
| Each output port rating | 100~120V 9A / 220~240V 9A, 50/60Hz (max) |
| Total output rating | 100~120V 11A / 220~240V 9A, 50/60Hz (max) |
| PON input connector | DB-9 (female) |
| PON output connector | DB-9 (male) |
| Safety‑shutdown connector | 8‑pin (female) IEC type |
| No‑load power consumption | 16 W at 230 V 50 Hz |
| Maximum load power | 1440 W at 120 V 60 Hz; 2300 W at 230 V 50 Hz |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidity range | 0 % ~ 80 % RH, non‑condensing |
| Weight | 3.7 kg |
| Dimensions (L×W×H) | 43.72 mm × 21 mm × 4.4 mm |
The unit accepts 100‑120 V at 12 A or 220‑240 V at 10 A, both at 50/60 Hz.
Use the supplied cable or a replacement with the same standard: 0.75 mm² × 3G (H05V‑V‑F or VW‑1) rated for 10 A, compatible with VDE 0620/0625 or EN 60320 specifications.
