ADMTV315 is a mobile TV one-chip receiver launched by Analog Devices. It supports T-DMB/DAB/FM triple bands, has a dynamic range of -102dBm to +5dBm, low power consumption, and supports 1.2V power supply. It adopts 144-Ball Chip Scale Package Ball Grid Array (CSP_BGA) and 92-Ball Chip Scale Package (CSP) packaging.
The ADMTV315 is a highly integrated System‑on‑Chip receiver for mobile TV (T‑DMB/DAB/FM) supporting triple‑band operation (Band III, L‑Band, FM). It combines a high‑performance RF front‑end tuner, OFDM demodulator, and baseband processing in a compact package, offering low power consumption and wide dynamic range.

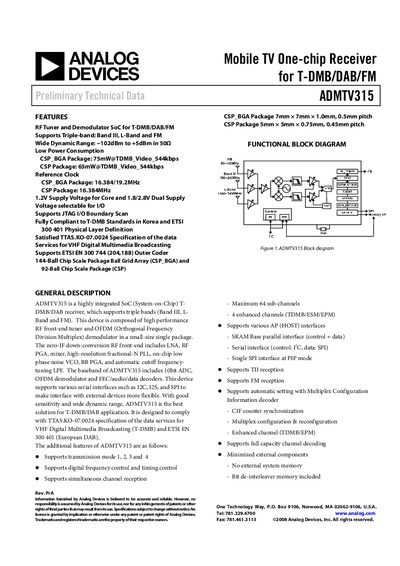

The document provides detailed electrical characteristics, recommended operating conditions, digital timing specifications, pin‑out maps for BGA and WLCSP packages, and ordering information. It also lists the RF frequency ranges for each band and the associated sensitivity and input‑power limits.
| Supply Voltage (1.2 V) – Minimum | 1.1 V |
|---|---|
| Operating Ambient Temperature | -40 °C to 85 °C |
| FM RF Frequency Range | 88 MHz – 108 MHz |
| L‑Band RF Frequency Range | 1450 MHz – 1492 MHz |
The recommended 1.2 V supply voltage ranges from 1.1 V (minimum) to 1.3 V (typical).
The device operates from –40 °C up to 85 °C ambient temperature.
