This manual introduces the use, maintenance and repair of 19-inch LCD color monitor chassis HUDSON 8, including monitor specifications, appearance, operating instructions, connecting to PC, troubleshooting, schematic diagrams, circuit diagrams, PCB layouts, repair flow charts, etc.

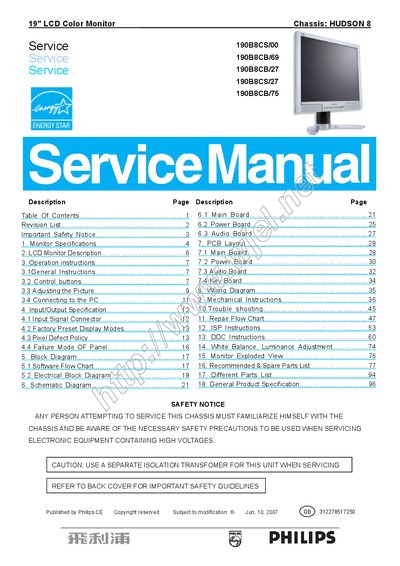

This service manual provides detailed information for servicing Philips 19" LCD monitors, including safety notices, specifications, block diagrams, and step‑by‑step repair instructions. It covers multiple model numbers such as 190B8CS/00, 190B8CB/69, 190B8CB/27, 190B8CS/27, and 190B8CB/75.
The document includes operating instructions, control button functions, connector descriptions, mechanical dimensions, power requirements, and regulatory compliance details. It also lists recommended spare parts and provides troubleshooting flow charts for field technicians.
| Screen size | 19" |
|---|---|
| Panel type | TFT LCD |
| Resolution | 1280 x 1024 pixels |
| Pixel pitch | 0.294 x 0.294 mm |
| Vertical refresh rate | 56‑75 Hz |
| Horizontal frequency | 30‑83 kHz |
| Video dot rate | 140 MHz |
| Audio output | 1.5 W × 2 |
| Dimensions (W×H×D) | 422 mm × 403.8 mm × 198.8 mm (incl. pedestal) |
| Weight | 5.36 kg |
| Power supply | 100‑240 VAC, 50/60 Hz |
| Power consumption (typ.) | 36 W |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Relative humidity | 20 % to 80 % |
| MTBF | 50 000 hours |
The monitor operates on 100‑240 VAC, 50/60 Hz and typically consumes 36 W.
