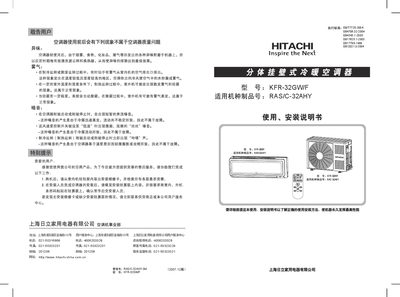

This is the user manual of a Hitachi air conditioner with model number RAS/C-32AHY KFR-32GW/F. Its main functions are cooling and heating.
This manual covers the proper installation of the indoor and outdoor units, wiring diagrams, and safety precautions for the Hitachi KFR‑32GW/F split‑type air conditioner. It also explains how to operate the remote control, adjust airflow, and use the built‑in functions such as automatic de‑humidification and sleep mode.
Maintenance guidance includes cleaning the stainless‑steel filter net, checking the drainage pipe, and periodic cleaning of the heat exchanger to keep performance optimal and avoid odors or noise. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Cooling Capacity | 3250 W |
| Heating Capacity | 3700 W |
| De‑humidification Capacity | 1.2 kg/h |
| Air Flow Rate | 600 m³/h |
| EER (Energy Efficiency Ratio) | 3.19 |
| COP (Heating Efficiency) | 3.30 |
Clean the filter net and heat exchanger regularly to remove accumulated dust and odors.
Remove the front panel, take out the filter net, vacuum or wash with a neutral detergent, then dry before reinstalling.
Manually turn the left/right adjustment knob on the panel to set the desired direction.
Use the remote control’s wind‑direction button to set the vertical angle of the air guide plate.
