ASX relays are products of Panasonic Electric Works Automation Controls Business Unit. The product has high contact reliability, high sensitivity of 50mW and low thermal electromotive force. It is suitable for micro load applications such as measuring instruments.

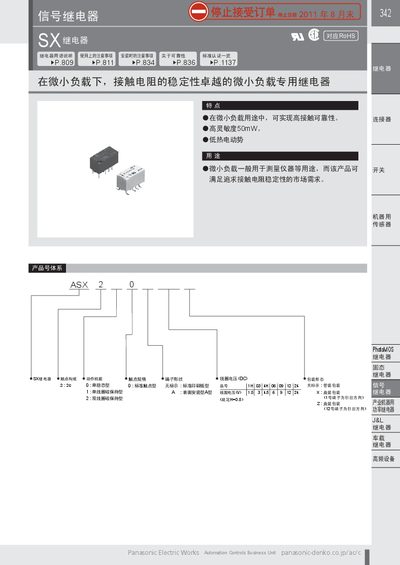

The document details the specifications of the Panasonic SX (ASX2) signal relay, including contact ratings, coil options, and mechanical dimensions. It also lists ordering numbers for various packaging types and coil voltage versions.
Additional sections cover installation notes, reliability data, and environmental limits such as temperature range and recommended cleaning methods. The data is intended for engineers selecting and integrating the relay into industrial equipment. This manual is written in Chinese.
| Contact rating | 10 mA @ 10 V DC |
|---|---|
| Coil power consumption (single‑stable type) | 50 mW (DC 1.5–12 V) |
| Withstand voltage (contact‑to‑contact) | AC 750 V 1 min |
| Mechanical life | ≥ 50 million cycles |
The relay is rated for 10 mA at 10 V DC.
Connect the coil according to the wiring diagram and ensure the applied voltage stays within ±5 % of the rated value.
The relay can be used from –40 °C to +70 °C.
