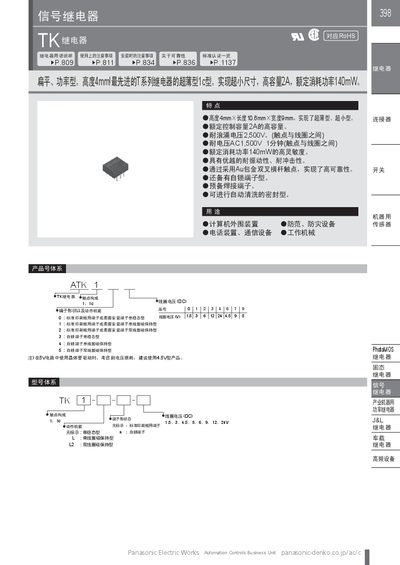

TK1 relay is a ultra-thin and ultra-small relay launched by Panasonic Electric Works. It is only 4mm high, 10.6mm long and 9mm wide, with a rated control capacity of 2A and a rated operating power of 140mW.
The TK1 series is a 1c‑type ultra‑thin signal relay designed for industrial machines, disaster‑prevention equipment, and communication devices. It measures 4 mm in height, 10.6 mm in length and 9 mm in width, offering a high control capacity of 2 A and low power consumption of 140 mW.
The relay provides a wide range of coil voltages (1.5 V to 24 V DC) and contact structures, including single‑stable, single‑coil magnetic hold, and dual‑coil magnetic hold types. It meets RoHS standards, offers surge resistance up to 2500 V, and can withstand AC voltage of 1500 V for one minute. This manual is written in Chinese.
| Height | 4 mm |
|---|---|
| Length | 10.6 mm |
| Width | 9 mm |
| Rated control capacity | 2 A |
| Rated power consumption | 140 mW |
| Surge voltage (contact‑to‑coil) | 2500 V |
| AC voltage (contact‑to‑coil, 1 min) | 1500 V |
| Coil voltage options | 1.5 V, 3 V, 4.5 V, 5 V, 6 V, 9 V, 12 V, 24 V DC |
| Contact structures | Single‑stable, single‑coil magnetic hold, dual‑coil magnetic hold |
The TK1 relay can withstand a surge voltage of 2500 V between the contacts and the coil.
Coil voltages are offered at 1.5 V, 3 V, 4.5 V, 5 V, 6 V, 9 V, 12 V and 24 V DC.
The relay measures 4 mm high, 10.6 mm long and 9 mm wide.
It has a rated control capacity of 2 A.
