GN relay is a small, narrow and long type that saves space, has a surge voltage of 2,500V (between the contacts and the coil), achieves high contact reliability, can be installed at high density, has a rated power consumption of 140mW, and has excellent vibration and impact resistance. It is a plastic sealed type that can be cleaned automatically.

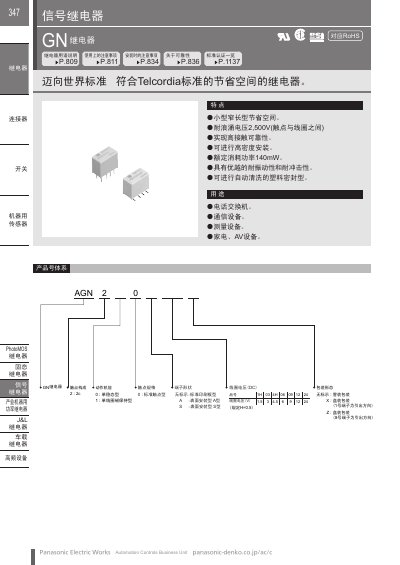

The GN series signal relays from Panasonic are compact, high‑reliability devices designed for industrial machines, communication equipment, and consumer AV products. The document provides detailed product numbering, packaging options, coil voltage ranges, and terminal configurations.
Performance data include contact ratings, power consumption, mechanical durability, and environmental limits. Dimensional drawings, terminal layouts, and installation notes are also supplied to aid proper mounting and wiring. This manual is written in Chinese.
| Rated power consumption (single‑stable type) | 140 mW (DC 1.5‑12 V) |
|---|---|
| Rated power consumption (magnetic‑hold type) | 100 mW (DC 1.5‑12 V) |
| Surge voltage rating (contact‑to‑coil) | 2 500 V |
| Contact rating (resistive load) | 1 A 30 V DC / 0.3 A 125 V AC |
| Operating temperature range | -40 °C to +85 °C |
Contacts are rated for 1 A at 30 V DC or 0.3 A at 125 V AC, with a maximum power of 30 W (DC) or 37.5 VA (AC).
The relay can operate from –40 °C up to +85 °C.
