The TX-S relay has ultra-high sensitivity with a rated power consumption of 50mW, small size, high contact reliability, excellent surge resistance, low thermoelectric potential, etc. It is suitable for telephone-related equipment, measuring instruments, communication equipment, OA equipment, medical equipment, automotive equipment and other applications.

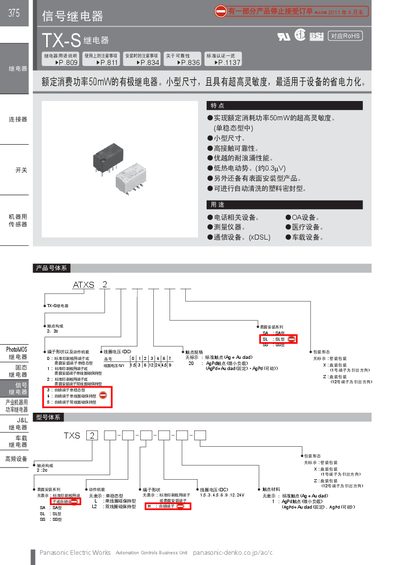

The TX‑S series signal relays from Panasonic provide ultra‑high sensitivity with a rated consumption power of 50 mW, compact size, high contact reliability, excellent surge resistance and low thermoelectric voltage (≈0.3 mV). They are offered in both through‑hole (tube) and surface‑mount (tray) packages, with options for standard Ag+Au‑clad contacts or AgPd contacts for low‑load applications.
The manual includes terminology, safety and installation precautions, reliability data, electrical and mechanical specifications, packaging details, and environmental handling instructions. It also lists the available coil voltages (1.5 V to 24 V) and contact configurations, along with test results for endurance, surge voltage, and temperature performance. This manual is written in Chinese.
| Rated consumption power | 50 mW |
|---|---|
| Coil rated voltage options | 1.5 V, 3 V, 4.5 V, 6 V, 9 V, 12 V, 24 V |
| Maximum continuous AC voltage | 750 V AC |
| Contact maximum voltage | 110 V DC |
| Contact maximum power | 30 W (DC) |
| Contact rating (current) | 1 A |
| Operating temperature range | -40 °C to +70 °C |
The TX‑S relay has a rated consumption power of 50 mW.
Coil voltages are offered at 1.5 V, 3 V, 4.5 V, 6 V, 9 V, 12 V and 24 V.
Standard contacts are Ag+Au‑clad, and low‑load contacts are AgPd (micro‑load).
The relay is supplied in tube (管装) and tray (盘装) packages, with orientation markings for installation.
