TX(ATX2) relay is a high voltage relay launched by Panasonic Electric Works Automation Controls Business Unit, which has the characteristics of AC2000V voltage resistance, 2500V surge voltage resistance, small size and high voltage resistance. It is suitable for telephone exchanges, transmission equipment, communication equipment, measuring instruments, household appliances, AV equipment, medical equipment, automotive equipment, and safety equipment.
The Panasonic TX(ATX2) signal relay is a compact, high‑voltage, high‑sensitivity relay designed for telephone exchanges, xDSL equipment, communication devices, measurement instruments, and consumer AV equipment. It offers a contact‑to‑coil insulation voltage of AC 2000 V, a rated control capacity of 2 A, and low power consumption (140 mW).

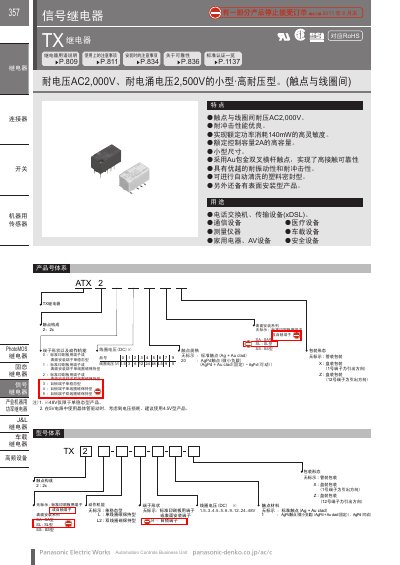

The document provides detailed electrical and mechanical specifications, coil voltage options (1.5 V‑48 V), contact material options (AgPd or standard Ag+Au clad), packaging forms (tube and tray), and installation guidelines, including reliability testing and environmental limits. This manual is written in Chinese.
| Contact rating | 2 A 30 V DC |
|---|---|
| Contact material | AgPd (micro‑load) or standard Ag+Au clad |
| Coil voltage range | 1.5 V, 3 V, 4.5 V, 5 V, 6 V, 9 V, 12 V, 24 V, 48 V |
| Insulation voltage (contact‑to‑coil) | AC 2000 V |
The relay contacts are rated for up to 2 A at 30 V DC.
Coil voltages are offered at 1.5 V, 3 V, 4.5 V, 5 V, 6 V, 9 V, 12 V, 24 V, and 48 V.
The relay is available in tube (管装) and tray (盘装) packaging, with different terminal orientations.
Contacts are either AgPd (for micro‑load applications) or standard Ag+Au clad.
