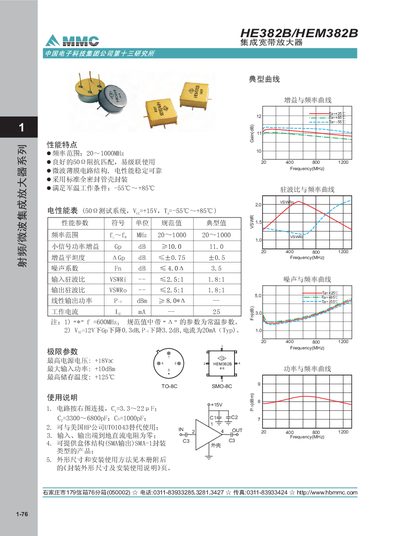

This document introduces the features and characteristics of the RF/microwave integrated amplifier series HE382B/HEM382B, including frequency range, impedance matching, stable and reliable electrical performance, etc. This integrated amplifier has the function of a wideband amplifier and is suitable for military working conditions.
This datasheet describes the HE382B/HEM382B integrated broadband amplifier, highlighting its wide frequency coverage, good impedance matching and sealed package suitable for harsh environments. It lists the main performance features such as small‑signal gain, gain flatness and VSWR values.
Detailed electrical parameters are given, including frequency range, gain, VSWR, output power, supply voltage and temperature limits, as well as mechanical dimensions and recommended installation methods. This manual is written in Japanese.
| Frequency range | 20 MHz – 1000 MHz |
|---|---|
| Small‑signal gain (Gp) | 10.0 dB – 11.0 dB (typ.) |
| Operating temperature range | -55 °C – +85 °C |
It operates from 20 MHz to 1000 MHz.
The typical small‑signal gain is between 10.0 dB and 11.0 dB.
It can operate from –55 °C up to +85 °C.
