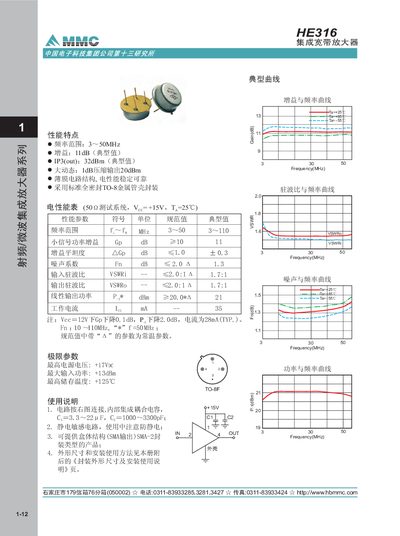

HE316 integrated broadband amplifier, frequency range 3~50MHz, gain 11dB (typical value), IP3 (out): 32dBm (typical value), large dynamic: 1dB compression output 20dBm, thin film circuit structure, stable and reliable electrical performance.
This manual describes the performance features of the MMC HE316 broadband amplifier, including its typical gain of 11 dB, output power of 20 dBm, and IP3 of 32 dBm over a 3‑50 MHz frequency range. It also lists key parameters such as VSWR (2.0:1 typical) and maximum input power (+13 dBm).
Installation notes cover the sealed TO‑8 metal package, recommended SMA connectors, and physical dimensions. The document includes a reference to a separate drawing for mounting details and provides contact information for technical support. This manual is written in Japanese.
| Typical gain | 11 dB |
|---|---|
| Typical output power | 20 dBm |
| Typical IP3 (output) | 32 dBm |
| Maximum input power | +13 dBm |
| Maximum operating temperature | +125 °C |
The typical gain is 11 dB.
The typical output power is 20 dBm.
The maximum input power is +13 dBm.
