This document introduces the features and characteristics of the RF/microwave integrated amplifier series, including frequency range, temperature compensation, impedance matching, and stable and reliable electrical performance.

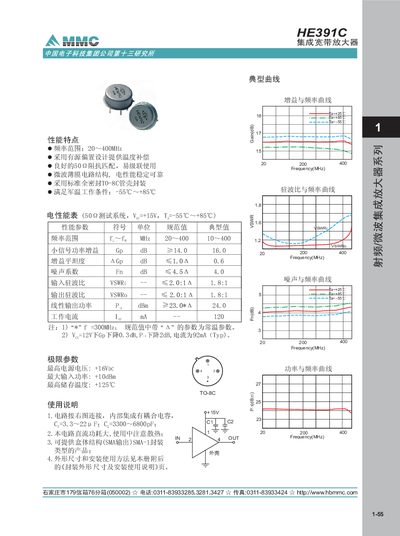

This manual describes the HBM HE391C integrated broadband amplifier, covering its typical performance, electrical specifications, and recommended operating conditions. It includes data on gain, output power, VSWR, frequency range, and power supply requirements.
Installation notes, physical dimensions, and mounting instructions are provided, along with cautions for heat dissipation and connector types. Contact information for the manufacturer is also listed. This manual is written in Chinese.
| Maximum Input Power | +10 dBm |
|---|---|
| Operating Temperature Range | -55 °C to +85 °C |
| Maximum Storage Temperature | +125 °C |
| Supply Voltage | +16 Vpc |
The device is rated for –55 °C to +85 °C during operation.
The maximum input power is +10 dBm.
