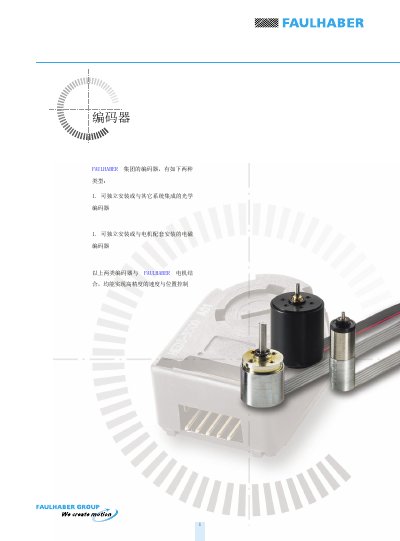

This document introduces the electromagnetic encoders and optical encoders of FAULHABER Group, including the working principles, features and characteristics of encoders, and application areas. It also provides detailed pictures of the products.
Faulhaber provides two main encoder types—optical and electromagnetic—that can be mounted independently or integrated directly with its DC micro‑motors. The IE2 series encoders are built into the motor housing, delivering high‑resolution position feedback while keeping the overall size minimal.
Key features include a compact structure, high resolution (up to 2048 L/R), low power consumption, non‑collector open‑collector output compatible with CMOS/TTL logic, and resistance to dust, pollution and light. These characteristics make the IE2 series suitable for demanding applications requiring precise speed and position control. This manual is written in Chinese.
| Resolution | up to 2048 L/R |
|---|---|
| Output type | non‑collector open output, no pull‑up resistor required |
| Logic compatibility | CMOS and TTL |
The IE2 series encoder provides a maximum resolution of up to 2048 L/R.
