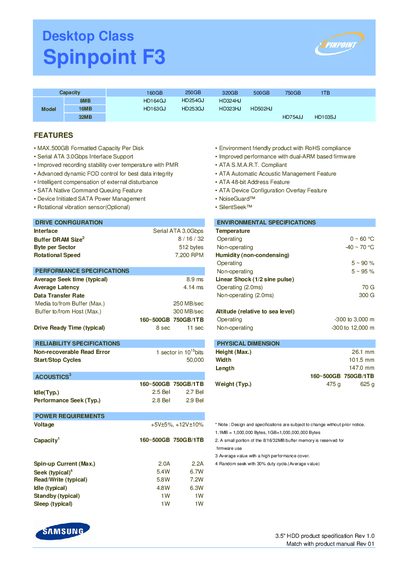

This document describes the features and characteristics of the Spinpoint F3 series desktop class hard drives, including a maximum formatted capacity of 500GB, RoHS compliance for environmental friendliness, support for Serial ATA 3.0Gbps interface, improved performance with dual-ARM based firmware, improved recording stability over temperature with PMR, and support for ATA S.M.A.R.T., ATA Automatic Acoustic Management, and ATA 48-bit Address features.
The Spinpoint F3 desktop class hard drive series offers capacities from 160 GB up to 1 TB with a 7,200 RPM spindle speed. It features a Serial ATA 3.0 Gbps interface, dual‑ARM firmware, NoiseGuard™ vibration control and advanced ATA functions such as Native Command Queuing and Automatic Acoustic Management.
Technical specifications include DRAM buffer sizes of 8 / 16 / 32 MB, operating temperatures from 0 °C to 60 °C, and a 3.5‑inch form factor measuring 101.5 mm × 26.1 mm × 147.0 mm and weighing up to 625 g. Power consumption ranges from 1 W in standby to about 7 W during read/write operations. This manual is written in Chinese.
| Maximum Formatted Capacity | 500 GB per disk |
|---|---|
| Interface | Serial ATA 3.0 Gbps |
| Rotational Speed | 7,200 RPM |
| Operating Temperature | 0 °C ~ 60 °C |
It uses a Serial ATA 3.0 Gbps interface.
The drives operate at 7,200 RPM.
Capacities include 160 GB, 320 GB, 500 GB, 750 GB and 1 TB.
