The CXD2401R is an electronic iris control IC released by Sony. It can be used in CCD monitoring cameras. The IC has electronic iris control drive, system clock generation, CCD image sensor clock pulse generation and other functions.
The CXD2401R is a 48‑pin LQFP electronic iris control IC designed for CCD image sensor cameras. It generates system clocks, timing pulses, and drives the CCD shutter.

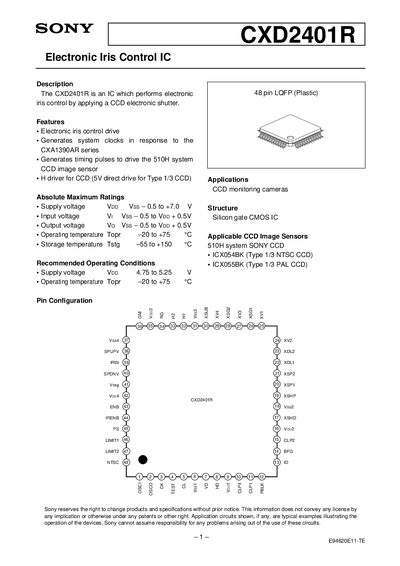

The document lists pin functions, absolute maximum ratings, detailed electrical and comparator characteristics, oscillator specifications, and package dimensions, enabling designers to integrate the IC into camera systems.
| Operating temperature | -20 °C to +75 °C |
|---|---|
| Storage temperature | -55 °C to +150 °C |
| Oscillator frequency | 20 MHz to 30 MHz |
| Package type | 48‑pin LQFP (plastic) |
It is supplied in a 48‑pin LQFP plastic package.
The oscillator operates between 20 MHz and 30 MHz.
The device operates from –20 °C up to +75 °C.
