SCO-2080RP is a high-definition day and night waterproof infrared integrated camera with 600 lines (color), 700 lines (black and white) resolution, 0 Lux (infrared light on) minimum illumination, 50m infrared visible distance, 3.6x (2.8 ~ 10mm) zoom lens, ICR day and night conversion, dynamic detection, SSNRIII (3D+2D), coaxial viewing (Pelco-C), RS-485, IP66, double voltage and other features.

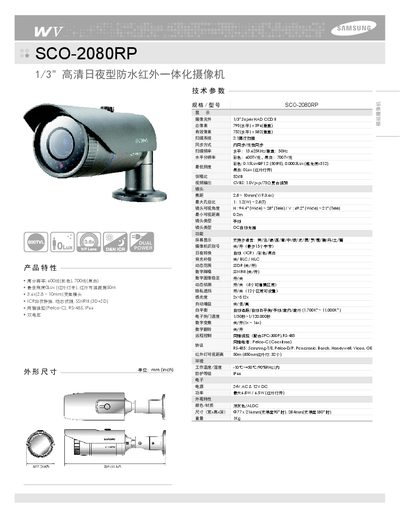

This manual describes the technical specifications of the Samsung SCO-2080RP camcorder, including its 173" Super HAD CCD sensor, 795 total pixels, 752 × 582 effective pixels, and 2:1 interlaced scanning. It also lists video output options, power requirements, and physical dimensions.
The document outlines key functions such as automatic day/night conversion, infrared illumination up to 50 m, multi‑language screen display, and remote control interfaces (Pelco‑C, RS‑485). Environmental ratings, lens details, and operating modes (color/black‑white, BLC/HLC) are also covered. This manual is written in Chinese.
| Image sensor | 173" Super HAD CCD |
|---|---|
| Total pixels | 795 |
| Effective pixels | 752 × 582 |
| Scanning system | 2:1 interlaced |
| Sync method | Internal / linear sync |
| Horizontal resolution (color) | 600 lines |
| Horizontal resolution (black‑white) | 700 lines |
| Minimum illumination (color) | 0.15 Lux @ F1.2 |
| Minimum illumination (black‑white) | 0 Lux (infrared on) |
| Video output | CVBS 10 Vp‑p |
| Power supply | 24 V AC & 12 V DC |
| Maximum power consumption | 6.8 W (infrared on) |
| Infrared illumination distance | 50 m |
The camcorder needs at least 0.15 Lux at an aperture of F1.2 for color images.
The infrared LEDs provide visibility up to 50 meters.
It can be powered by 24 V AC or 12 V DC.
The video output is CVBS with a 10 Vp‑p signal level.
