HP Pocket Media Drive is an external hard drive with large capacity, convenient for storing and transferring media files. It can be connected to a computer via USB ports and comes with backup software.
The HP Pocket Media Drive is a portable external hard drive that connects via USB 2.0 (backward compatible with USB 1.1). It comes pre‑formatted in NTFS, offers large storage capacity, and includes optional backup software for some models.

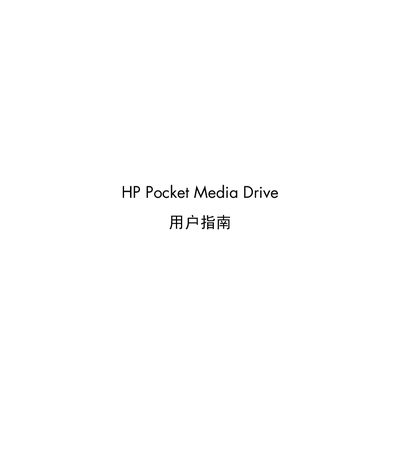

The manual covers safety warnings, component description, installation (including insertion into HP drive bays), formatting to FAT32, software usage, file transfer, gaming, troubleshooting, and regulatory information. It also lists the technical specifications of the device. This manual is written in Chinese.
| Interface | USB 2.0 (backward compatible USB 1.1) |
|---|---|
| Storage capacity | Varies by model |
| Rotation speed | 5,400 RPM |
| Data transfer rate | USB 1.1 = 12 MB/s, USB 2.0 = 480 MB/s |
| Data transfer rate | USB 2.0 = 480 MB/s |
| Weight | 0.45 lb (≈0.2 kg) |
| Power input | 5 V ±5%, operating current <0.6 A |
Open the system‑tray, double‑click the “Safely Remove Hardware” icon, select the Pocket Media Drive, and confirm removal before unplugging the USB cable.
Disconnect the drive, reconnect it, open My Computer, right‑click the removable disk, choose Format, select FAT32 as the file system, and start the format process.
Windows Me, XP Home, XP Professional or XP Media Center Edition, at least 32 MB of RAM, and an available USB 1.1 or 2.0 port.
Check that the drive is powered, verify the USB cable is firmly connected, try unplugging and re‑plugging after 10 seconds, and use Device Manager to confirm the USB port is recognized.
