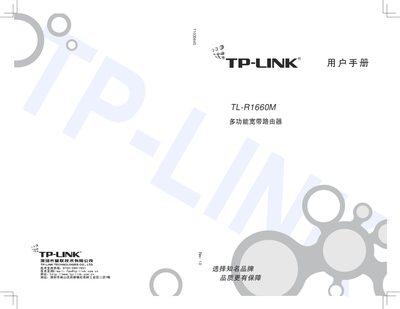

This document is the user manual for TP-LINK 71035645 multi-functional broadband router Rev: 1.0. It provides information on the purpose, conventions, and overview of the user manual, as well as the product description, features, and specifications.
This manual explains how to install and configure the TL‑R1660M multi‑function router. It covers hardware installation, quick‑start setup, detailed configuration options, and troubleshooting tips.
The document is organized into chapters for an introduction, product overview, hardware installation, quick‑install guide, full configuration guide, and appendices with FAQs and TCP/IP settings. This manual is written in Chinese.
| IEEE standards | 802.3, 802.3u |
|---|---|
| WAN ports | 1 × 10/100M Ethernet |
| LAN ports | 15 × 10/100M Ethernet |
| Auto MDI/MDIX | Supported |
| UPnP | Supported |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -40 °C – 70 °C |
| Operating humidity | 10 % – 90 % RH |
The router’s default IP address is 192.168.1.1 with a subnet mask of 255.255.255.0.
Press and hold the Reset button for about 5 seconds until the system indicator blinks, then release.
Use the built‑in DHCP wizard to enable automatic IP assignment, or manually set the PC’s IP to the 192.168.1.x range.
The device offers fifteen 10/100 Mbps LAN ports.
