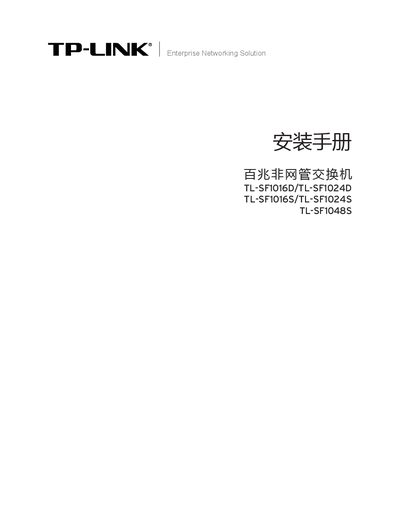

This manual mainly introduces the hardware features, installation methods and precautions of TL-SF1016S/TL-SF1024S/TL-SF1048S/TL-SF1016D/TL-SF1024D switches.
The guide provides an overview of the TL‑SF series unmanaged switches, describing their 10/100 Mbps auto‑MDI/MDIX RJ45 ports, LED indicators, power‑saving technology and rack‑mount options. It also lists the specific models and their port counts.
Detailed sections walk the installer through unpacking, safety precautions, power connection, hardware mounting, cable wiring to RJ45 ports, initial power‑up behavior, and post‑installation checks. An appendix supplies the full technical specifications for each model. This manual is written in Chinese.
| Supported standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Data transfer rate | 10 Mbps half‑duplex / 20 Mbps full‑duplex; 100 Mbps half‑duplex / 200 Mbps full‑duplex |
| Power input | 100‑240 V~ 50/60 Hz AC |
| Operating temperature | 0 °C – 40 °C |
| Dimensions (TL‑SF1016S/TL‑SF1024S) | 440 mm × 180 mm × 44 mm |
Use an AC source of 100‑240 V at 50/60 Hz.
They operate between 0 °C and 40 °C.
Yes, all ports support auto‑MDI/MDIX.
