This catalog introduces NEC TOKIN's EMI suppression parts, including common mode power line, signal line, telephone, etc., including DIP type, DIP noise filter, wound cable type toroidal core etc.

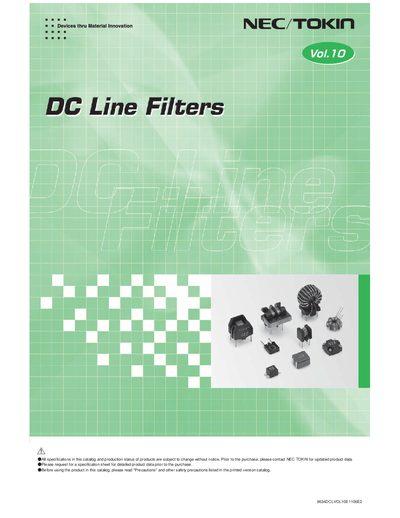

This manual is a product catalog of NEC Tokin’s DC line filter series. It lists a wide range of EMI suppression components, including DIP type filters, common‑mode power‑line and signal‑line filters, toroidal cores, bead inductors, and large‑current power inductors. Each series is identified with part numbers and basic electrical parameters.
The document also contains safety and export notices, a disclaimer that specifications may change without notice, and instructions to request updated specification sheets before purchase. The catalog is organized by product classification and includes tables of rated voltage, current, inductance, and dimensions for many series such as the SH series.
| SH-101 Rated voltage | 150 V |
|---|---|
| SH-101 Rated current | 3.0 A |
| SH-101 Inductance | 0.35 µH |
No, all specifications and product status are subject to change without notice; customers should contact NEC Tokin for updated data before purchase.
