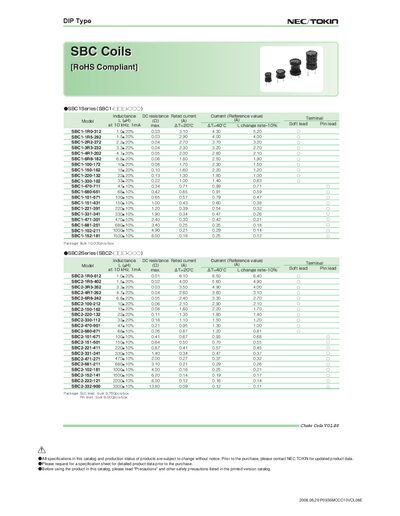

This NEC Tokin catalog lists specifications for SBC series DIP type choke coils, covering inductance, resistance, current ratings and dimensions.
The document is a product catalog for NEC Tokin's SBC series DIP type choke coils. It provides detailed tables for each series (SBC1‑9) with inductance, DC resistance, rated current, and package information.
The catalog also includes mechanical data such as lead type, lead pitch, core dimensions, and the operating temperature range, and notes that specifications are subject to change and should be confirmed with NEC Tokin before purchase.
| Inductance (example SBC1‑1R0‑312) | 1.0 µH |
|---|---|
| DC resistance (example SBC1‑1R0‑312) | 0.03 Ω |
| Package (SBC1 series) | Bulk 10,000 pcs/box |
| Operating temperature range | ~20 °C to +105 °C |
They are supplied in bulk packs of 10,000 pieces per box.
The coils are rated for an operating temperature from about 20 °C up to roughly 105 °C.
Contact NEC Tokin for updated product data before purchase.
Both soft lead and pin lead configurations are offered.
