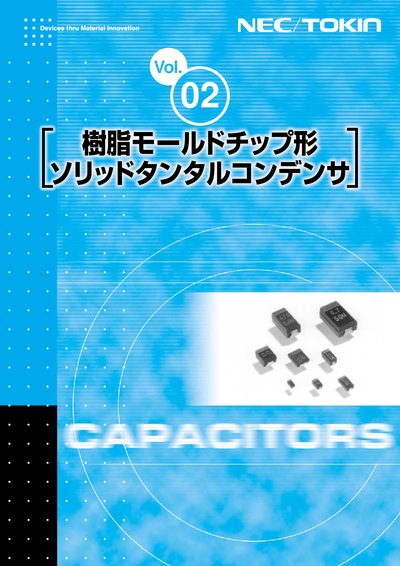

The NEC Tokin E/SV series solid tantalum chip capacitors datasheet provides specifications, dimensions, voltage ratings, and usage guidelines.
The E/SV series solid tantalum chip capacitors are small‑size, high‑capacity components designed for a wide range of electronic equipment. The datasheet lists the available capacitance values, voltage ratings, dimensions, and recommended mounting methods.
NEC Tokin classifies its products into Standard, Special, and Specific quality levels and highlights that the E/SV series are lead‑free, environmentally friendly parts. Usage notes, temperature limits, and safety considerations are also included. This manual is written in Japanese.
| Rated voltage | 2.5 V, 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V, 35 V |
|---|---|
| Operating temperature range | -55 °C to +125 °C |
NEC Tokin provides Standard, Special, and Specific quality levels, each with increasing reliability and testing requirements.
Yes, the E/SV series are designated as lead‑free environmental products.
The capacitors are rated for operation from –55 °C to +125 °C.
