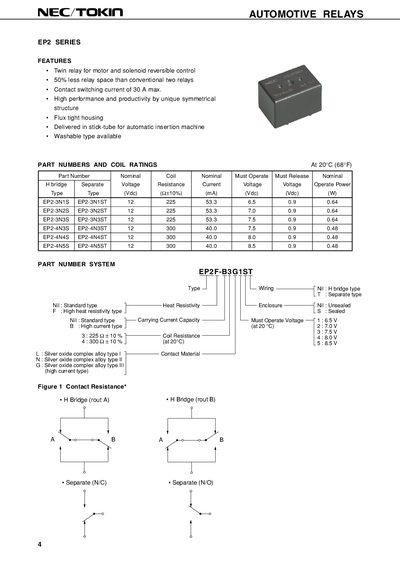

The NEC/TOKIN EP2 Series automotive relays datasheet provides specifications, dimensions, coil ratings, and part numbers for the EP2 relay family.
The EP2 series automotive relays feature a twin‑relay design for motor and solenoid reversible control, offering up to 30 A contact switching current and a compact footprint that saves 50 % of space compared with conventional two‑relay solutions. They are supplied in stick‑tube packaging for automatic insertion machines, with a wash‑able type also available.
Key specifications include contact resistance values as low as 3.2 mΩ, operate and release times of approximately 5 ms and 7 ms respectively, insulation resistance of 100 MΩ at 500 Vdc, and an operating temperature range of –40 °C to +85 °C. Mechanical life expectancy is rated at 1 × 10⁶ operations, and electrical life at 1 × 10⁵ operations under specified load conditions.
| Contact Switching Current | 30 A max (at 16 Vdc) |
|---|---|
| Contact Switching Voltage | 5 Vdc min – 16 Vdc max |
| Operate Time | ≈ 5 ms (at 12 Vdc) |
| Release Time | ≈ 7 ms (at 12 Vdc) |
| Insulation Resistance | ≥ 100 MΩ at 500 Vdc |
| Ambient Temperature Range | –40 °C to +85 °C |
| Nominal Operate Power | 0.48 W / 0.64 W (at 12 Vdc) |
| Weight | ≈ 15 g |
The EP2 relays can switch up to 30 A (at 16 Vdc).
They are rated for ambient temperatures from –40 °C to +85 °C.
Insulation resistance is at least 100 MΩ measured at 500 Vdc.
