System x3620 M3 is a cost-optimized server with large internal storage capacity. It features Intel Xeon processors, high reliability, and simplified management. It offers flexible configuration options for cost-effective growth.
The IBM System x3620 M3 is a 2U rack‑mount server designed for medium‑size enterprises that need high‑capacity internal storage and flexible configuration. It is built on Intel® Xeon® 5500/5600 series processors and offers integrated software RAID with optional hardware RAID options.

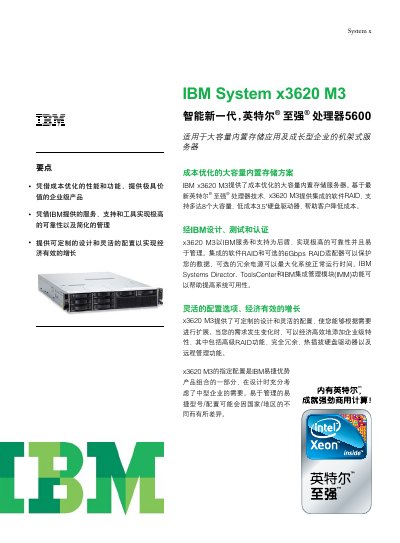

Key highlights include up to eight hot‑swap 3.5" SAS/SATA drive bays, dual‑port Gigabit Ethernet, redundant 675 W power supplies, and a three‑year limited warranty. The server supports a range of operating systems such as Windows Server 2008 R2, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. This manual is written in Chinese.
| Processor (max) | Intel Xeon 5500/5600 series |
|---|---|
| Maximum memory | 96 GB DDR3 RDIMM |
| Drive bays (hot‑swap) | Up to 8 × 3.5" SAS/SATA |
| Maximum internal storage | 16 TB |
| Network interface | Dual‑port Gigabit Ethernet |
| Power supply | 1/2 × 675 W (redundant optional) |
| RAID support | Software RAID 0/1, optional hardware RAID 0/1/5 |
| Warranty | Three‑year limited |
The server can be equipped with up to 96 GB of DDR3 RDIMM memory across its slots.
It supports up to eight hot‑swap 3.5" SAS or SATA drive bays.
The system includes software RAID 0/1 and optional hardware RAID 0/1/5 depending on the configuration.
It comes with a three‑year limited warranty.
