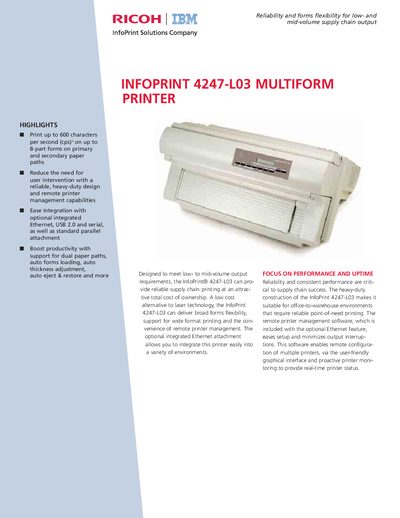

The InfoPrint® 4247-L03 MULTIFORM PRINTER is designed to meet low- to mid-volume output requirements, providing reliable supply chain printing at an attractive total cost of ownership.
The IBM 4247-L03 Multiform Printer is designed for low‑ to mid‑volume output in supply‑chain environments, offering reliable heavy‑duty construction and remote printer management. It supports up to two continuous‑form paper paths, auto‑loading, thickness adjustment, and automatic eject/restore, making it suitable for office‑to‑warehouse use.
Key specifications include multiple print speeds (up to 600 cps in draft mode), a maximum graphics resolution of 360 × 360 dpi, and a rated printhead life of 700 million characters. Connectivity options cover parallel, Ethernet, serial, and USB 2.0, while the printer handles paper widths from 3 to 17 inches and thicknesses up to 0.635 mm.
| Maximum Print Speed (Draft mode) | 600 cps @ 10 cpi |
|---|---|
| Best Draft Mode Speed | 400 cps @ 10 cpi |
| NLQ Mode Speed | 262 cps @ 10 cpi |
| LQ Mode Speed | 133 cps @ 10 cpi |
| Monthly Workload | 44,000 pages per month |
| Throughput | 550 pages per hour |
| Maximum Graphics Resolution | 360 x 360 dpi |
| Rated Printhead Life | 700 million characters |
| Paper Width | 3 to 17 inches |
| Maximum Paper Thickness | 0.635 mm (0.025 inches) |
| Power Voltage | 100 to 230 VAC, 50/60 Hz |
| Power Consumption | 22 W standby, 116 W average printing |
| Physical Dimensions | 26.2" × 15.4" × 12.2" (670 mm × 390 mm × 315 mm) |
| Weight | 46.3 lb (21 kg) |
The printer can print at up to 600 characters per second at 10 cpi in draft mode.
It supports up to two continuous‑form paper paths, with an optional additional tractor.
You can choose either Parallel + Ethernet or Parallel + Serial + USB 2.0 attachment options.
The printhead is rated for 700 million characters.
